Brand Name : E-link
Model Number : LNK-GYT420P
Certification : CE, RoHS, FCC, ISO9001
Place of Origin : Guangdong, China
MOQ : 1 pcs
Price : $39-$59
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability : 1000pcs/month
Delivery Time : 5-12working days
Packaging Details : PoE Switch Standard Export Package
Product Name : Unmanaged 6 ports Industrial 250m PoE Switch
Interface : 4 x 10/100M copper RJ-45 ports, 2 x 100M RJ45 uplink port
Operating Temperature : : -40~80℃
PoE Standard : Both IEEE 802.3af / IEEE 802.3at
Dimensions (WxDxH) : 119*87*28 mm without package/ 175*130*55 mm with package
Input Voltage : DC48V (48~55V)
Industrial 4-Port PoE (250m Extend) + 2 Uplink Fast Ethernet Switch
Overview
The LNK-GYT420P is a rugged 6-port industrial PoE switch with extended 250m transmission,
designed for surveillance and wireless applications. It provides 4 PoE+ ports and 2 uplinks, delivering
stable power and data for IP cameras and APs. With VLAN support, redundant DC power, and a wide
temperature range, it ensures reliable performance in harsh environments such as transportation,
security, and energy projects.
Features
Long-Distance PoE: Extend data and power up to 250m at 10Mbps for IP cameras
High Power Supply: 4 PoE+ ports supporting IEEE802.3af/at, max 30W each
Flexible Uplinks: 2 additional 100M Ethernet uplink ports for network expansion
Industrial Reliability: -40°C to 80°C wide temperature, IP30 metal housing
Enhanced Security: VLAN & QoS modes reduce broadcast storms and improve stability
Rugged Protection: 6KV surge protection, redundant DC inputs, EMC compliance
Versatile Installation: Wall-mount or DIN-Rail for flexible deployment
Technical Indexes
Product Name | Unmanaged 6 ports Industrial 250m PoE Switch | |||||||||||||||||||||||||
Product Model | LNK-GYT420P | |||||||||||||||||||||||||
Interface | 4 x 10/100M copper RJ-45 ports, 2 x 100M RJ45 uplink port | |||||||||||||||||||||||||
Network Protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3x flow control and back pressure IEEE802.1d Spanning Tree Protocol | |||||||||||||||||||||||||
Other parameters | ||||||||||||||||||||||||||
PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at | |||||||||||||||||||||||||
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | ||||||||||||||||||||||||||
PoE port Auto detect AF/AT devices | ||||||||||||||||||||||||||
PoE Port Output Voltage: DC48V | ||||||||||||||||||||||||||
Power Pin Assignment:1/2+;3/6- | ||||||||||||||||||||||||||
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) | |||||||||||||||||||||||||
Performance Specification | Bandwidth: 1.2Gbps Packet Buffer Memory:1M Packet Forwarding Rate:1488000pps/port Address Table: 2K | |||||||||||||||||||||||||
Forwarding Mode | Store-And-Forward | |||||||||||||||||||||||||
LED Display |
| |||||||||||||||||||||||||
Power Supply | Input Voltage: DC48V (48~55V) Type of input: 4 pins terminal block(redundancy V1+V1-,V2+V2-) No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af) Full-load consumption: MAX 104W@ DC52V2A (802.3af+) Full-load consumption: MAX 130W@ DC52V2.5A (802.3at) | |||||||||||||||||||||||||
Working Environment | Working temperature: -40~80℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) | |||||||||||||||||||||||||
Industry Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||||||||||||||||||
Mechanical Structure | Shell: IP30 protect grade, metal shell Installation: DIN-Rail or Wall mounts | |||||||||||||||||||||||||
Certification | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B | |||||||||||||||||||||||||
MTBF | 300,000 hours | |||||||||||||||||||||||||
Warranty | 5 years | |||||||||||||||||||||||||
Dimension | 119*87*28 mm without package 175*130*55 mm with package |
Ordering Information
Model | Description |
LNK-GYT420P | 4-Port 10/100Base-T PoE(up to 250m) + 2-Port 100Base-T Ethernet Switch |
Mounting Options | ► Default DIN-Rail Bracket installed |
Power Options | ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |

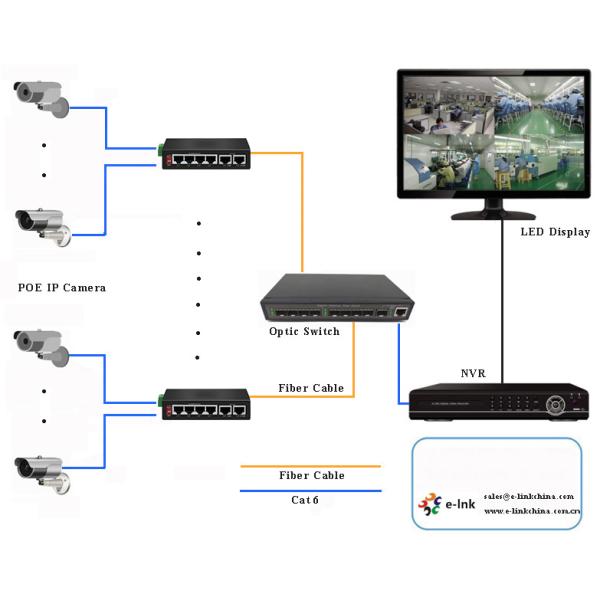

Application
![]() |
Industrial 4-Port PoE (250m Extend) + 2 Uplink Fast Ethernet Switch Images |
